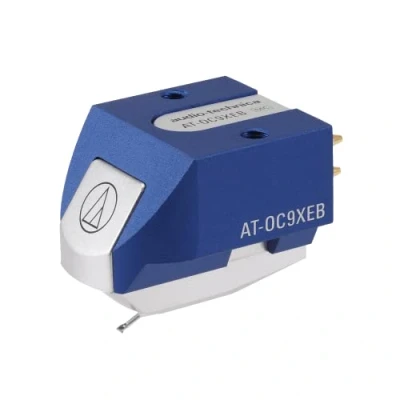

Audio Technica Testina (at Oc9xeb) Stereo a Doppia Bobina Mobile Con Collegament

Model AT-OC9XEB Mounting 1/2' centers / Threaded inserts Frequency Response 20 to 30,000 Hz Body Material Aluminium Channel Separation 25 dB (1 kHz) Output Channel Balance 1.5 dB (1 kHz) Output Voltage 0.32 mV (at 1 kHz, 5 cm/sec) Vertical Tracking Angle 20 degrees Vertical Tracking Force Range 1.8 to 2.2 g (standard 2.0 g) Stylus Shape Elliptical Bonded Stylus Size 0.3 x 0.7 mil Stylus Construction Bonded round shank Cantilever Aluminium pipe Coil Impedance 12 Ohms (1 kHz) Coil Inductance 25 mH (1 kHz) DC Resistance 12 Ohms Static Compliance 20 x 10 - 6 cm / dyne Dynamic Compliance 9 x 10 - 6 cm / dyne (100 Hz) Terminal Pins Brass Wire Used for Coil PCOCC (Copper by Ohno Continuous Casting process.) Recommended Load Impedance Min 100 Ohms Weight 7.6 g Dimensions 17.3 (H) x 16.8 (W) x 25.7 (L) mm Accessor ies Included 1 non magnetic screw driver, 1 brush; 2 washers, 4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm
