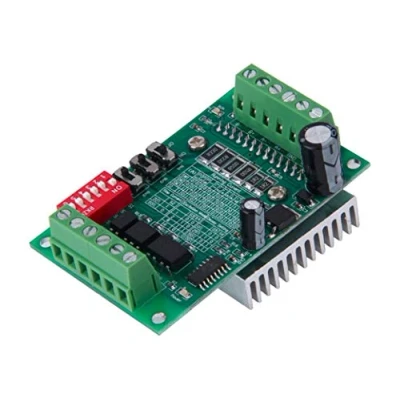

TECNOIOT TB6560 3A Drives CNC Stepper Motor Single Axis 10 Files Controller TB6560AHQ

【TB6560】B6560 3A Drives CNC Stepper Motor Single Axis 10 Files Controller Board TB6560AHQ 【Descripcion】Working voltage DC 10V-35V. Recommended to use a switching power supply DC24V power supply. 6N137 high-speed optical coupling, guarantee high speed without losing step. 【Compatible】Using the TB6560AHQ chip with low voltage shutdown, overheating stop and overcurrent; protection circuit to ensure optimal performance. Rated maximum output: ± 3A, peak 3.5A. 【Easy operation】For two-phase within 42,57 stepping 3A / four-phase / of line four / six-wire stepper motor,and is not suitable for more than 3A stepper motor. Automatic half current function.Subdivision: whole step, half-step, step 1/8, 1/16 step, a maximum of 16 subdivisions. 【High performance】Working voltage:DC 10-35V;Rated maximum output: ± 3A, peak 3.5A; Main color:Green; Size:75 x 50 x 33mm; Weight: 80g
