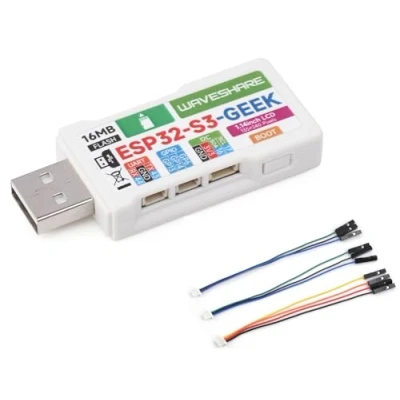

Waveshare ESP32 GEEK Mini Development Board Based On S3R2 Controller Chip,with 1.14inch 65K Color LCD,Supports 2.4GHz WiFi And BLE 5,USB A,I2C,UART Port,GPIO Header
Descrizione
Amazon
Adopts ESP32-S3R2 chip with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz Built in 512KB SRAM, 384KB ROM, 2MB of on-chip PSRAM, and onboard 16MB Flash memory.Onboard 1.14inch 240×135 pixels 65K color IPS LCD display Integrated 2.4GHz WiFi and Bluetooth LE wireless communication.WiFi supports Infrastructure BSS in Station, SoftAP, and Station + SoftAP modes.WiFi supports 1T1R mode with data rate up to 150 Mbps.Bluetooth supports high power mode (20dBm).Internal co-existence mechanism between Wi-Fi and Bluetooth to share the same antenna Onboard 3PIN UART port, 3PIN GPIO header and 4PIN I2C port.Equipped with plastic case and cables Provides online open-source demo and resources, more convenient for learning and development
Confronta i webshop (1)
Descrizione
(1)
Adopts ESP32-S3R2 chip with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz Built in 512KB SRAM, 384KB ROM, 2MB of on-chip PSRAM, and onboard 16MB Flash memory.Onboard 1.14inch 240×135 pixels 65K color IPS LCD display Integrated 2.4GHz WiFi and Bluetooth LE wireless communication.WiFi supports Infrastructure BSS in Station, SoftAP, and Station + SoftAP modes.WiFi supports 1T1R mode with data rate up to 150 Mbps.Bluetooth supports high power mode (20dBm).Internal co-existence mechanism between Wi-Fi and Bluetooth to share the same antenna Onboard 3PIN UART port, 3PIN GPIO header and 4PIN I2C port.Equipped with plastic case and cables Provides online open-source demo and resources, more convenient for learning and development
Specifiche del prodotto
