Mini Dual Gigabit Ethernet Base Board per Raspberry Pi Compute Module 4 CM4, Integrate ETH/Micro SD/USB Interfacce, Adatto Valutare il CM4 o Essere Integrato nei Prodotti Finali

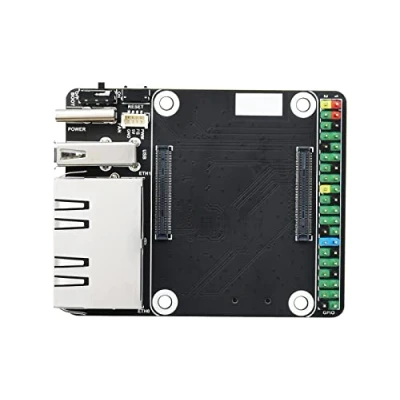

【Mini Dual Gigabit Ethernet Base Board】Designed for Raspberry Pi Compute Module 4, onboard standard CM4 socket and 40PIN GPIO header, suitable for Compute Module 4 Lite/eMMC series module, Mini size: 55.0 × 68.0mm 【Rich Interfaces】Onboard dual gigabit ethernet RJ45 connector, USB2.0 port, Micro SD card socket for Compute Module 4 Lite (without eMMC) variants, meet the needs of specific applications in development 【Fan Header】Onboard 4-wire SH1.0 port, allows speed adjustment and measurement, only 5V fans are supported 【Power Input】Supports 5V DC Type-C interface power supply. Type C interface can be used as a power supply or as a USB interface to program the image (need to use the DIP switch to switch) 【Note】Do not plug or unplug any device other than a USB while it is powered on. In order to ensure the normal power supply for CM4, please do not connect other devices when using the Type C interface to program the image
