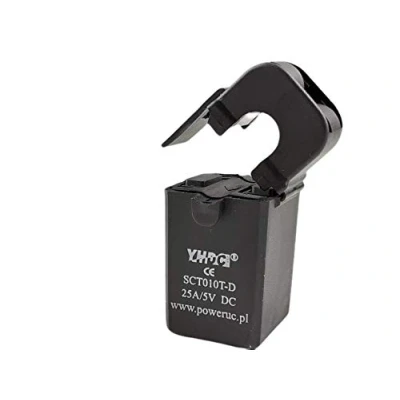

YHDC split core current transformer input SCT010T D 5A 10A 20A 30A 50A output 1V/3V/5V (SCT010T 10A/5V)
Prezzi da
Amazon
Split core current transformer Model: SCT010T-D Rated input: 5A/10A/20A/25A/30A/50A Rated output: 1V/3V/5V DC Max. Input: 100%（continuous)/150%(1min) Accuracy: ±2 % Working voltage: ≤720V Material of core: Ferrite Operating temperature: -25℃～+60℃ Storage temperature: -30 ℃ ~ + 90 ℃ Frequency range: 50Hz～1KHz Dielectric strength: 3.5KV 50Hz 1min Output impedance: 7kΩ Isolation impedance :＞100MΩ(500V DC) Weight: 45g 5V DC output, split core current transformer. Suspended installation, crimping terminal output.
Per saperne di più
9,80
Descrizione
Amazon
Split core current transformer Model: SCT010T-D Rated input: 5A/10A/20A/25A/30A/50A Rated output: 1V/3V/5V DC Max. Input: 100%（continuous)/150%(1min) Accuracy: ±2 % Working voltage: ≤720V Material of core: Ferrite Operating temperature: -25℃～+60℃ Storage temperature: -30 ℃ ~ + 90 ℃ Frequency range: 50Hz～1KHz Dielectric strength: 3.5KV 50Hz 1min Output impedance: 7kΩ Isolation impedance :＞100MΩ(500V DC) Weight: 45g 5V DC output, split core current transformer. Suspended installation, crimping terminal output.
Confronta i webshop (1)
Shop
Prezzo
Descrizione
(1)
Split core current transformer Model: SCT010T-D Rated input: 5A/10A/20A/25A/30A/50A Rated output: 1V/3V/5V DC Max. Input: 100%（continuous)/150%(1min) Accuracy: ±2 % Working voltage: ≤720V Material of core: Ferrite Operating temperature: -25℃～+60℃ Storage temperature: -30 ℃ ~ + 90 ℃ Frequency range: 50Hz～1KHz Dielectric strength: 3.5KV 50Hz 1min Output impedance: 7kΩ Isolation impedance :＞100MΩ(500V DC) Weight: 45g 5V DC output, split core current transformer. Suspended installation, crimping terminal output.
Specifiche del prodotto
