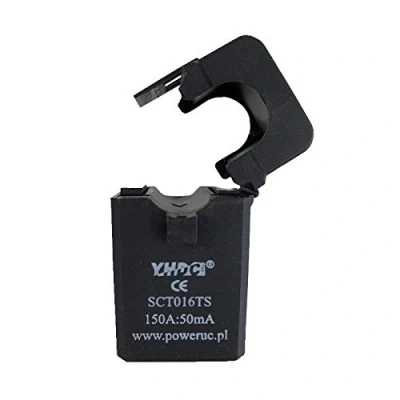

YHDC split core current transformer SCT016TS rated input 150A output 50mA 1%

split core current transformer Model：SCT016TSRated Input:150A Rated output: 50mA Accuracy: ±1% Linearity: ≤0.2% Turns ratio:1:3000 Max.samping resistance: 20Ω Work voltage: 660V Work frequency:50/60Hz Operating temperature: -25..+60℃ Storage temperature: -30..+90℃ Fire resistance: UL94-V0 Dielectric strength(50Hz 1min): 3.5KV Material of core: Silicon steel sheet Mounting type: Suspension Weight: 85g Suspension installation,crimp terminal output.Mechanical strength:the number of switching is not less than 1000 times.
